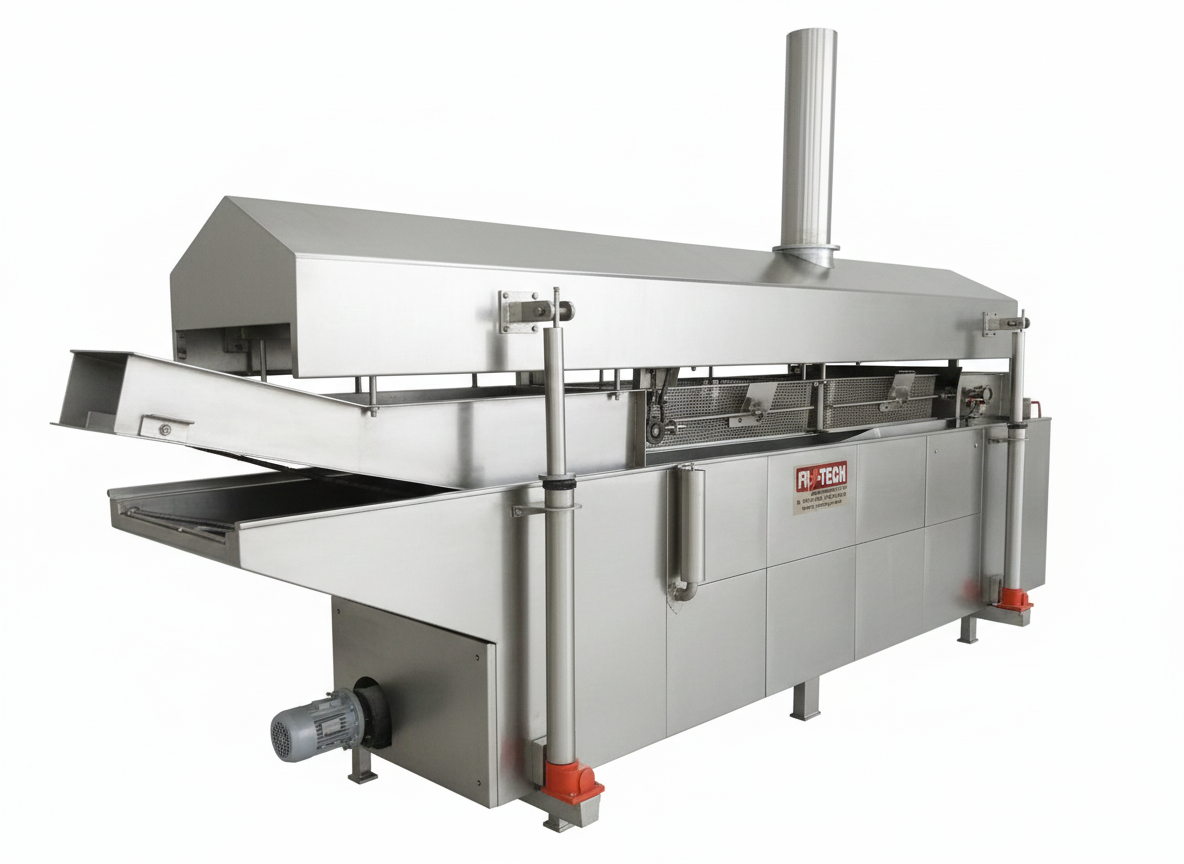

Puffed Snacks Food Fryer Machine

The Frying Process for Puffed Snacks

Puffed snacks like corn curls (Cheetos style) or pellet snacks (Fryums) have a very low density and high surface area. The automatic fryer must manage these unique traits:

  • Dual-Belt Submersion: Puffed snacks are extremely light and will float instantly. To ensure they don't just sit on top of the oil, these machines use an Upper Hold-Down Belt that keeps the product fully submerged at a precise depth.
  • Rapid Heat Recovery: Because puffed snacks are often "wet" (containing 10%–20% moisture from the extrusion process), they cause a sudden drop in oil temperature. Industrial puffed fryers use high-capacity External Heat Exchangers to maintain a constant $180$°C to $190$°C.
  • Short Residence Time: Most puffed snacks only need 30 to 90 seconds of frying. The automatic conveyor speed is controlled via a VFD (Variable Frequency Drive) to allow for this high-speed throughput.

2. Technical Specifications (Industrial Continuous Models)

Feature

Standard Industrial Spec

Production Capacity

100 kg/hr to 1,000 kg/hr

Material

All food-contact parts are SS 304

Belt Width

400 mm, 600 mm, or 1,000 mm

Heating Method

Thermic Fluid (Indirect), Gas Burner, or Diesel

Filtration

Continuous drum filter or paper belt filter (removes "fines")

3. Key Components of the Frying System

  • Metering Paddles: Located at the infeed, these paddles ensure a consistent volume of snacks enters the fryer, preventing clumping or "jamming" at the entrance.
  • Automatic Slagging System: Puffed snacks (especially corn-based) shed a lot of fine particles. A scraper at the bottom of the tank continuously removes this "slag" to prevent it from burning and ruining the oil's acid value.
  • Pneumatic Hood Lift: The entire top assembly (hood and belts) lifts automatically at the touch of a button, allowing for easy cleaning—a critical feature for snacks that leave behind cornmeal residue.

4. Integration into a "Kurkure" Line

A fully automatic puffed snack line is generally composed of:

  1. Extruder: Creates the "raw" puffed shape from corn grits or flour.
  2. Vibratory Feeder: Levels the product before it hits the oil.
  3. Continuous Fryer: The core frying unit.
  4. Centrifugal or Vibratory De-oiler: Removes excess oil to ensure the snack isn't greasy.
  5. Flavoring System: A rotating seasoning drum that applies spices (like "Masala Munch" or "Cheese" flavors).
