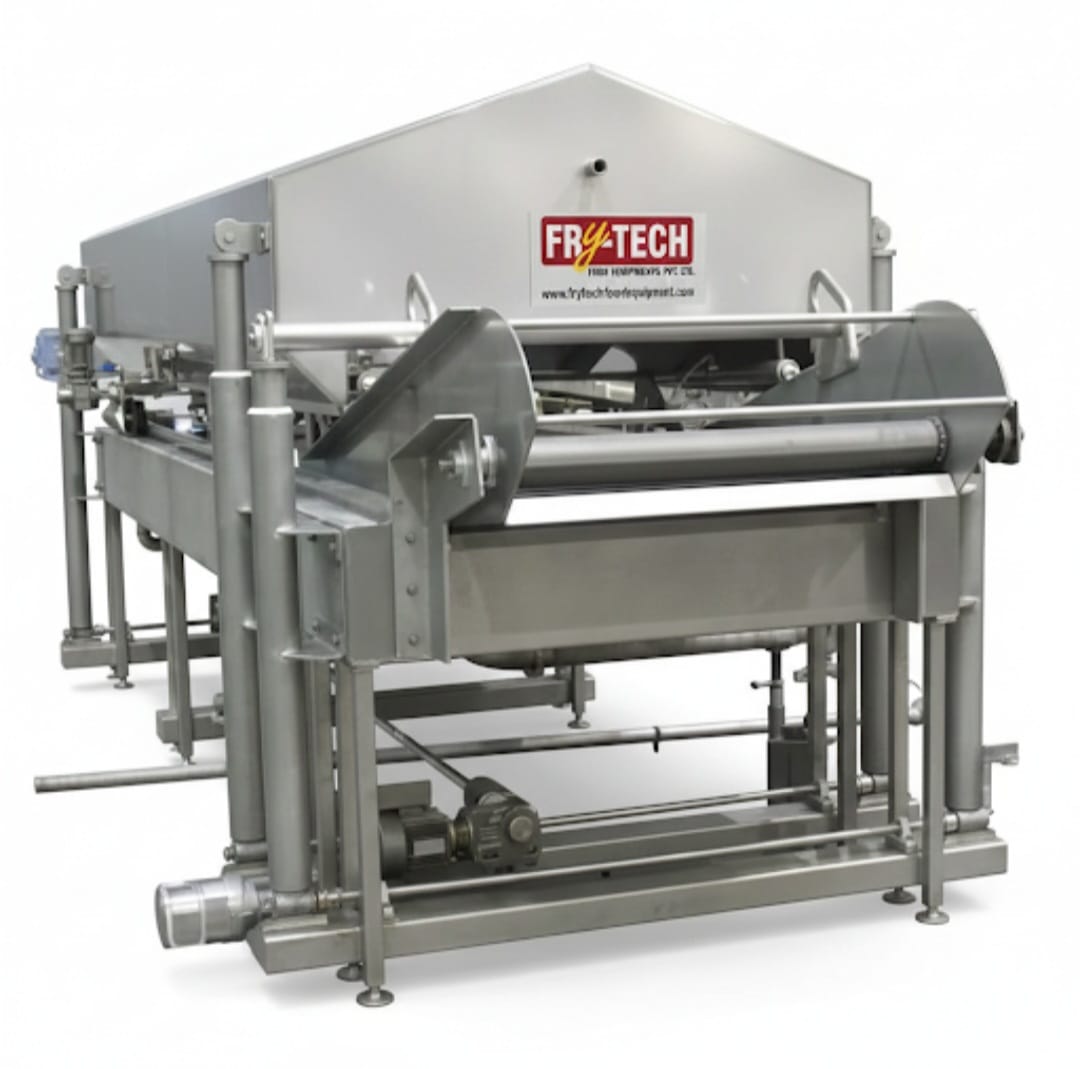

Apple Fryer Machine

FRY-TECH production of Automatic Apple Chips has shifted toward two distinct technologies: Atmospheric Frying (for traditional crunchy chips) and Vacuum Frying (for premium, low-fat, "healthy" fruit crisps).

Since apple slices have a high sugar content, they burn easily in standard fryers. The automatic line must include precise temperature control to prevent caramelization (browning).


1. The Full Production Flow (Peeling to Flavoring)

FRY-TECH  fully automatic apple line integrates these stages:

  • Automatic Washing: Bubble washer to remove wax and debris.
  • Peeling, Coring & Slicing: A specialized machine (like the AS-series) that skewers the apple, peels the skin, removes the core, and slices it into uniform rings (3mm–5mm) in one motion.
  • Anti-Oxidation Bath: Slices are dipped in a citric acid solution to prevent browning before they hit the oil.
  • Continuous Fryer (Atmospheric or Vacuum):
    • Atmospheric: A belt fryer with a "submerged" mesh to keep slices under oil.
    • Vacuum (Premium): Frying at lower temperatures (90°C–120°C) under pressure. This preserves the bright white/yellow color of the apple and reduces oil uptake by 50%.
  • Centrifugal De-Oiling: Essential to remove excess oil while the chip is hot to ensure a non-greasy finish.
  • Flavoring Drum: Applies cinnamon, honey, or sea salt glazes.

2. Technical Specifications

Feature

Industrial Specification

Capacity

100 kg/hr to 1,000 kg/hr

Material

SS 304 (Mirror finish to prevent sugar buildup)

Control System

PLC Touchscreen with VFD speed control

Heating Method

Electric, Gas, or Steam (Steam is best for Vacuum units)

Peeling Speed

Up to 900 apples per hour per unit

Critical Tip for Apple Chips:

Sugar Management: Because apples are high in natural sugar, the oil temperature should never exceed 160°C in an atmospheric fryer. If it does, the chips will taste bitter. For the "export-quality" white apple chip, Vacuum Frying is the only way to succeed in FRY-TECH
