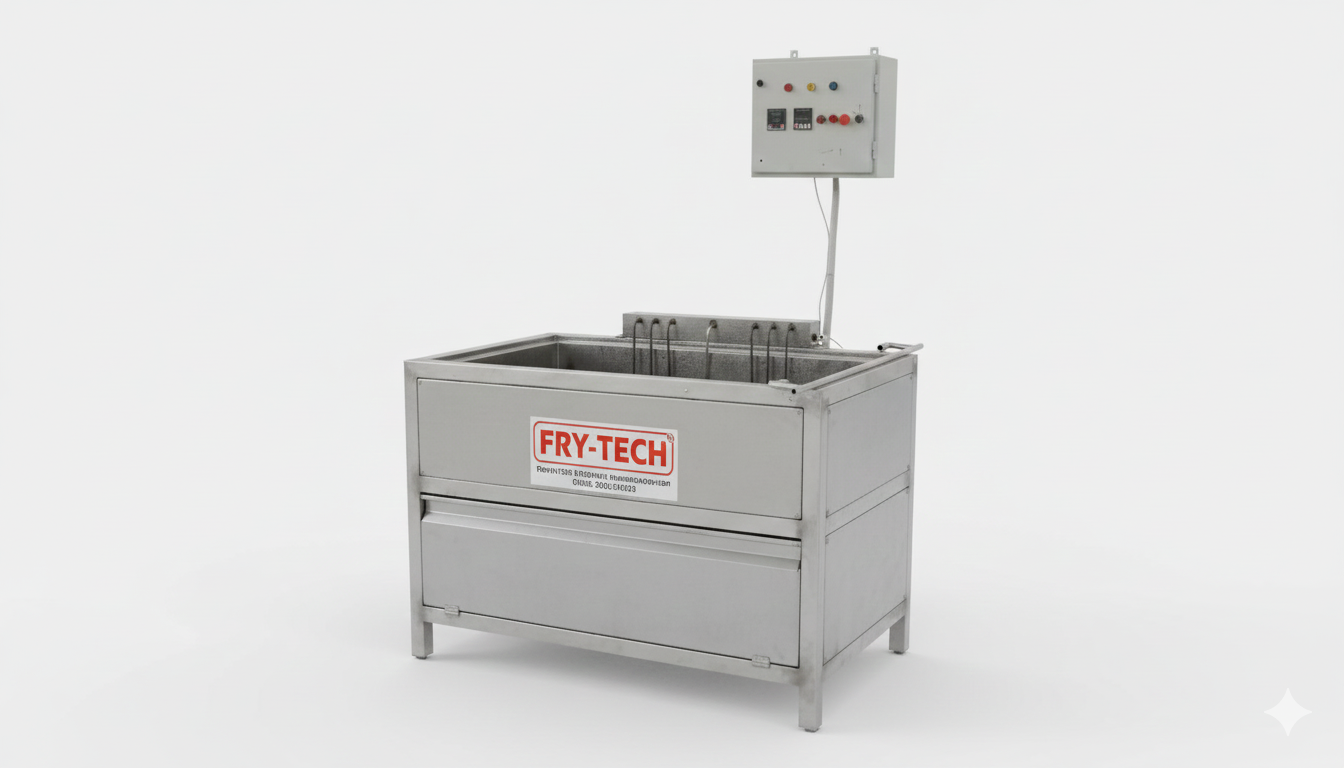

Electric Heating Fryer Machine

Electric Rectangular Fryer with a 150-Liter capacity is a high-performance industrial machine often used for frying snacks like Namkeen, Fryums, and Potato chips. Unlike gas or diesel models, electric fryers offer a much cleaner working environment and more precise temperature control.

1. Technical Specifications (150-Ltr Industrial Model)

Feature

Details

Oil Capacity

150 Liters (approx. 130 kg of oil)

Pan Size

Typically 36" x 24" x 12" or 48" x 24" x 10"

Heating Load

18 kW to 24 kW (Requires 3-Phase Connection)

Material

Food Grade SS 304 (Tank & Body)

Temperature Control

Digital Thermostat (Range: 50 C to 250 C

Safety Features

Auto-cut off, Overload Protection, Emergency Stop

Production Capacity

60–80 kg/hr (Namkeen) | 30–40 kg/hr (Potato Chips)


2. Induction vs. Standard Electric Heating

When choosing an electric fryer in this capacity, you have two main options:

  • Standard Tubular Heaters: These use immersion coils placed directly in the oil. They are affordable but can be harder to clean.
  • Induction Heating (Recommended): This is the modern standard in Ahmedabad's food industry.
    • Efficiency: Up to 90% heat transfer efficiency.
    • Oil Life: Since there are no "red hot" coils, the oil doesn't burn at the contact points, extending its life significantly.
    • Environment: Minimal heat radiation into the room.

3. Key Operational Benefits

  • Zero Emissions: No chimney or exhaust pipe for fuel fumes is required, making it perfect for indoor kitchens or smaller units.
  • Precision: Electric heating allows for accuracy. This ensures that every batch of snacks has the same color and crispness.
  • Integrated Oil Filter: Most 150-liter rectangular models come with a Bucket-type Oil Filter that removes "fines" (small dough particles) as you fry.

  •
