1:- Green Tender Jackfruit Peeler

Green Tender jackfruit will be peeled by abrasion method. Unit is fabricated from stainless steel Sheet, supported on mild steel angle framed structure. Operated by 2.0 H.P. motor of 440 volts three phase AC main.

Voltage:380V/220V , Power:0.85KW
Compressor:1.5kw , Fruit diameter:12-35cm
Fruit height:≤ 80cm , Peeling:0.5-1.5mm adjustable, Dimension:800*500*1680m m

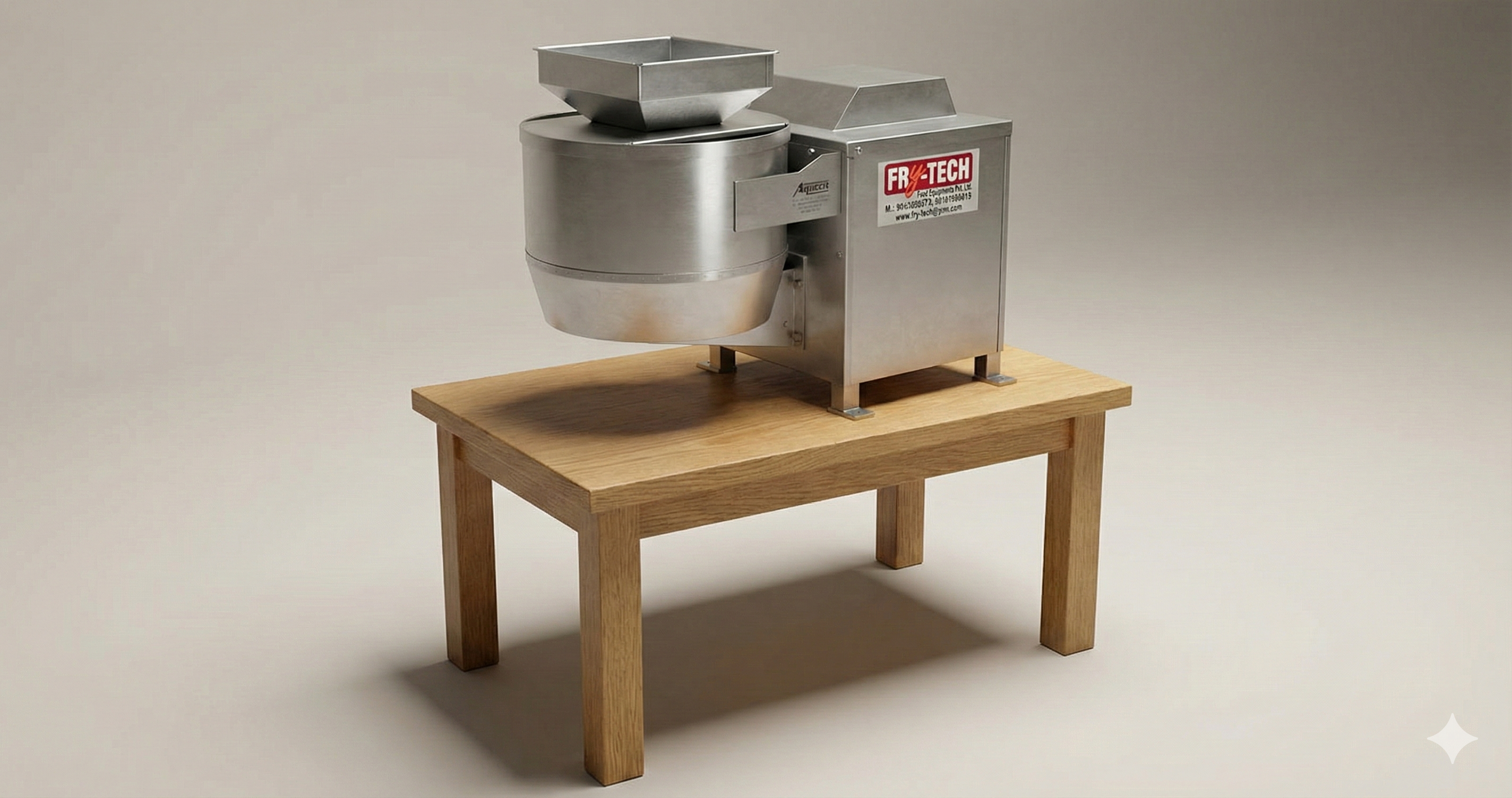

2:- Green Tender Jackfruit Slicer :-

With special food quality alloy cast aluminium cutter assembly with stainless steel cutter inside. The thickness of Green Tender Jackfruit can be adjusted. Operated by 1 HP 220/230 volts single phase AC motor. The equipment body is made of AISI 304, duly polished.

Capacity Approx. 50-60 Kgs per hr

equipped with 1HP MOTOR,Made of SS. Specially designed to make slices from  Jackfruit.

Approx. 50-60 Kgs per hr

3:- Stainless Steel Table

Fabricated from 1.25mm thick 304 grade Stainless steel top table, supported on Stainless steel Square Pipe stands. Table Dimension : 5’ft L x 3’ft W x 3’ft H

Top stainless steel 304. With M.S. legs. Approx. Size 6’x3’x3’ M.S. frame work.

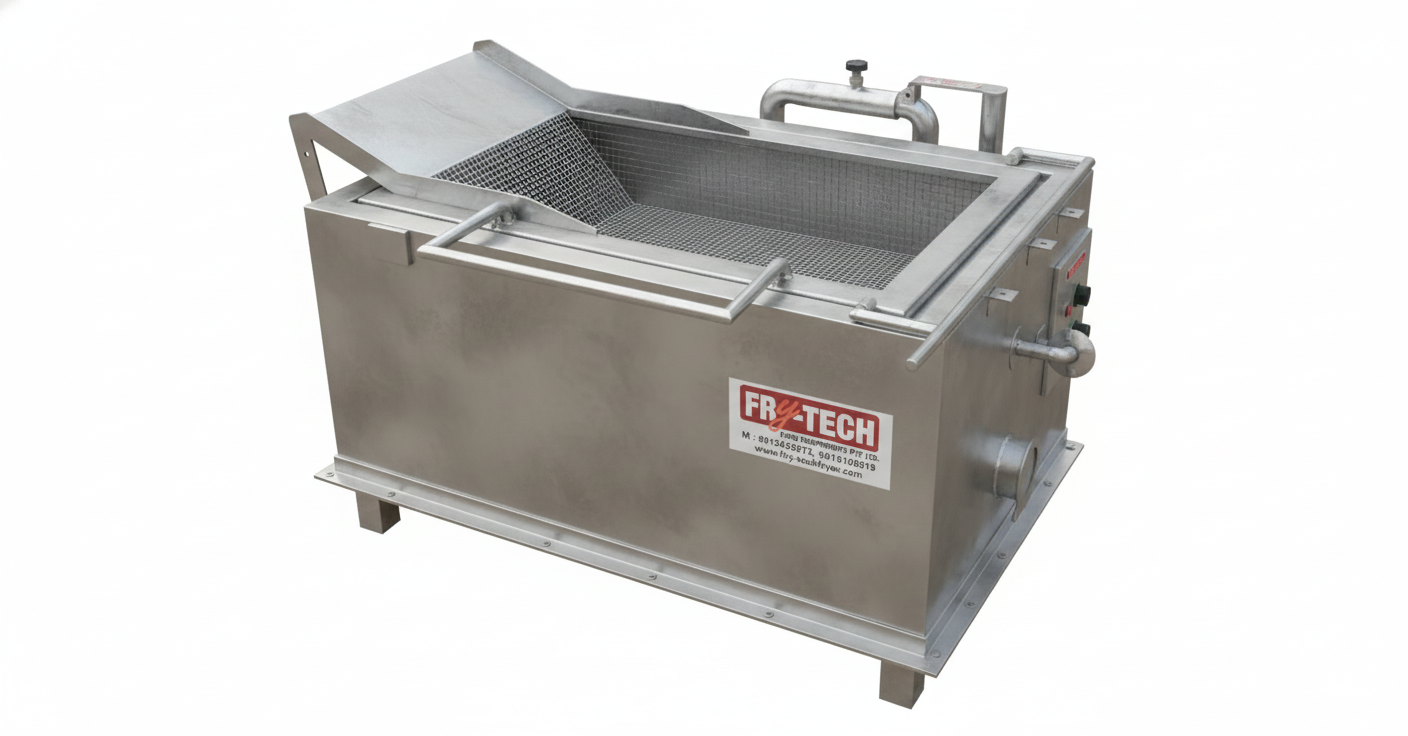

4:- Blanching Equipment :

Double walled construction, the tank has its inner chamber made from stainless steel sheet, while outer cabinet is of mild steel sheet, finished in powder coated paint/attractive colour. 3” thick layer of glass wool insulation is provided. The Unit is supported on mild steel angle framed structure. Electrically operated heaters are included. Two nos perforated stainless steel sheet fabricated basket of size : 16” x 16” x 10” will be supplied along with the tank.

Mounted on S.S legs, size of tank 2’x2’x2 made of SS-304 stainless steel. Complete with steam coil, water inlet, water outlet and one perforated bucket

5:- Hydro Extractor

Inner drum is made of stainless steel perforated sheet with bottom thick stainless steel plate. The whole unit is supported on mild steel angle framed structure . Operated by 2 H.P. motor. Inner Drum : 20” dia x 24” deep

To remove excess surface water from fruit & vegetables by centrifugal system before frying All contact parts made of SS304 Complete with electric motor, starter, v-belts
Made of:- Stainless Steel, Aluminum, Iron
Electric Motor:-  0.5H.P. Single Phase

Capacity:- 50 Kgs per hr

6:- Gas Oven

Complete with Gas Burner with regulator, framed in mild steel angle framed structure, covered with mild steel sheet.

7:- Frying Pan

Fabricated from bottom with 4mm thick stainless steel plate having surrounding with 2.5 mm thick sheet, all joints argon welded and polished. Dimension : Top dia : 32” and deep 15”

Complete made of SS. Complete with burner and tilt able system to discharge chips from sieve.

Capacity:- 50Kg. Per Hour

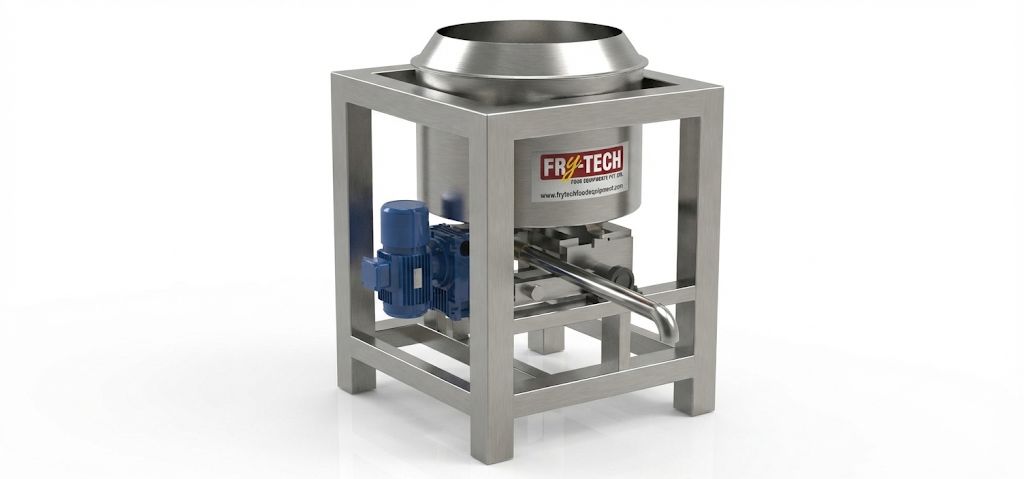

8:- De-Oiling Tank

Inner drum is made of stainless steel perforated sheet with bottom thick stainless steel plate. The whole unit is supported on mild steel angle framed structure . Operated by 2 H.P. motor. Inner Drum : 20” dia x 24” deep.

PS-HYDRO DRYER: To remove excess surface water from fruit & vegetables by centrifugal system before frying All contact parts made of SS304 Complete with electric motor, starter, v-belts
Made of:- Stainless Steel, Aluminum, Iron

Electric Motor:-  0.5H.P. Single Phase

 Capacity:- 50 kg/hr

9:- Drum Mixer

All contact parts are of 304 type stainless steel sheet, The Blender is operated by 3 H.P. motor with reduction gear box. The Blender is equipped with Air Blower to spread Spice powder. Drum Size : 20” dia x 40” length.

Pan made of SS with 2Hp/3ph motor. For coating and blending of spices into slices.

Capacity-10Kgs./batch.

10:- Automatic Chips packing machine(( Note We are not manufacturing Packing Machine only send you to quoteson from out source)

UP TO  50gm. 24-32 bpm.

PLC controlled machine Multi head packing Machine.  As per flow rate of materials. Electric load 3.5kw.  Filling Accuracy +-/1-2%. Power required 415V+-/10%. Pillow type packaging machine

PS-900-AUTOMATIC FORM FILL SEAL MACHINE:- PLC controlled achine. The machine is designed to perform pillow type packing  All contact parts are made up of SS 304.



Packing range from 50 gm to 1000 gm. 50-60 pouch per minuts

–
