Fish Dryer Dryer Machine
Fish Dryer Machine with a capacity of 100 to 500 kg per hour is a
large-scale continuous system designed to maintain the nutritional value,
texture, and color of the seafood while removing moisture efficiently.
For this high-volume capacity, Continuous Belt Dryers or Heat Pump
Tunnel Dryers are the industry standard.
1. Types of Dryers for 100–500 kg/hr
|
Dryer Type |
Best For |
Mechanism |
|

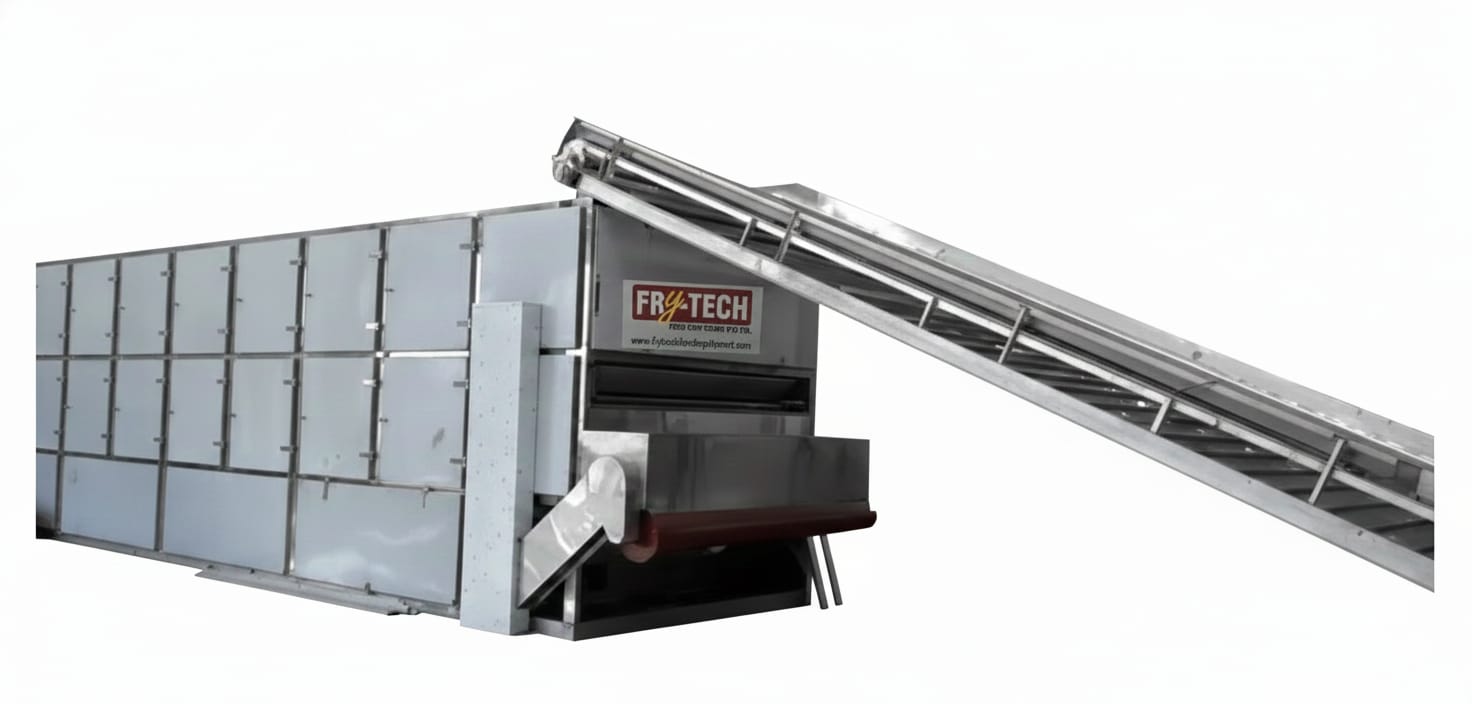

Continuous Mesh Belt Dryer |
Small fish (Anchovies, Shrimp), Fish Feed |
A multi-layer conveyor belt moves fish through temperature-controlled
zones. |
|
Heat Pump Tunnel Dryer |
Large fish, Fillets, Premium Seafood |
Uses dehumidification technology at low temperatures 40 C to 60 C to preserve color and omega-3 oils. |
|
Solar-Hybrid Tunnel Dryer |
Eco-friendly large-scale drying |
Uses solar thermal energy with a back-up electric heater for 24/7
operation. |
2. Technical Specifications (Industrial Grade)
|
Feature |
Details for 500 kg/hr System |
|
Heating Source |
Heat Pump (Electric), Steam, or Gas |
|
Material |
Full SS 304 or SS 316L (Mandatory for salt-water resistance) |
|
Conveyor Speed |
Variable (VFD Controlled) to adjust drying time |
|
Temperature Control |
PLC Based 35C to 90 C |
|
Dehumidification |
Integrated system to pull out moisture in humid coastal climates |
|
Footprint |
Typically 20 to 40 feet in length |
Why Heat Pump
Technology is Better for Fish
If you are exporting
or selling premium dried fish, Heat Pump heating is superior to
traditional fire-based heating:
- No Smell/Contamination: No smoke or fuel fumes touch the fish.
- Texture: Prevents "case hardening" (where the outside is dry but
the inside is raw).
- Salt Resistance: Since these systems often recirculate
air, they are built with higher-grade anti-corrosive materials.
